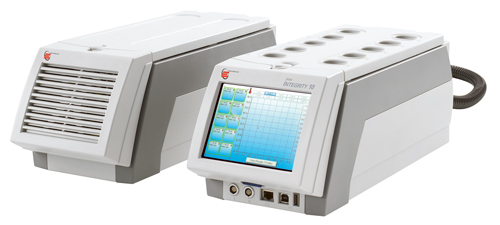

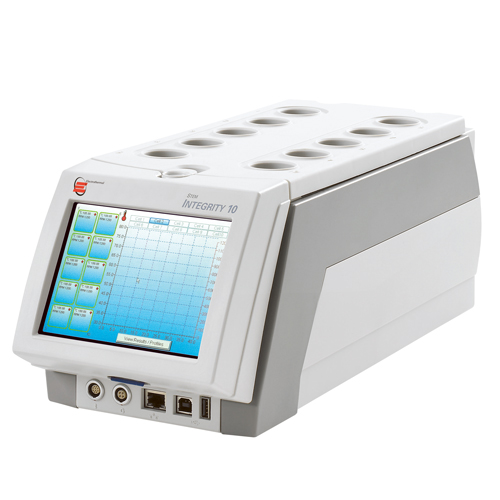

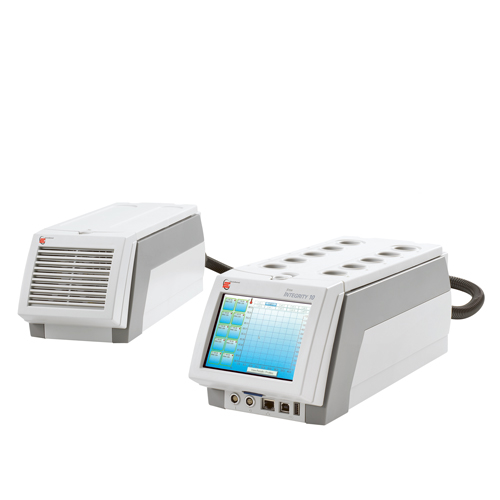

The STEM Integrity 10 Reaction Station is an excellent screening tool that can be used in most laboratories. It has:

10 individual cells in one reaction block


Individual control of temperature and stirring rate for each cell


Temperature range of -30°C to 150°C


Temperature ramp rate: 0.1°C/min to 5°C/min



Temperature stability ± 0.5°C
Minimal set point overshoot: 0.5°C

Stirring rate of 350 rpm - 1200 rpm


Cell working volume of 2ml - 25ml


Optional attachments for refluxing, and working under vacuum or inert gas conditions


Optional multi-infrared probes for solubility /crystallisation studies

a a a a a a

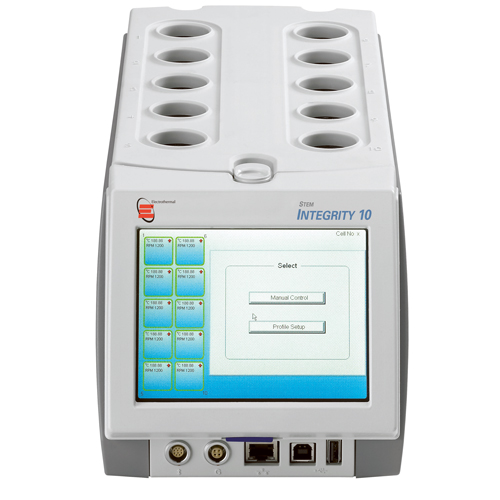

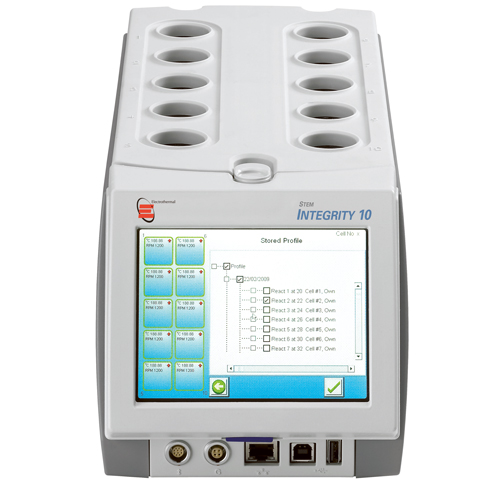

Automatic microprocessor control through a touchscreen It has potential applications in a range of industries, including the petrochemical, chemical, pharmaceutical and food processing industries; in fact almost every laboratory could use this highly efficient screening tool

The STEM Integrity 10 Reaction Station enables you to conduct 10 different reactions simultaneously within the same unit, each reaction being conducted within its own
cell, at its own individual temperature and stir rate.

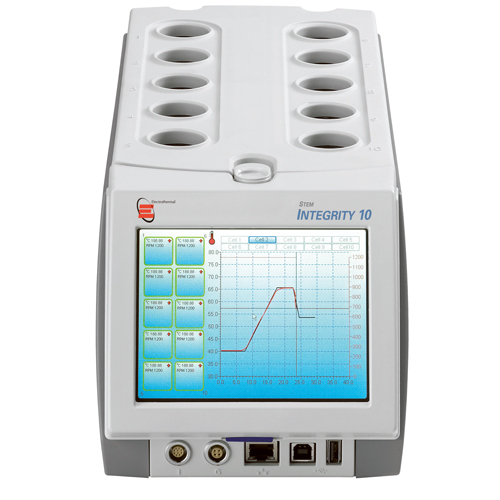

If desired, fast heating and cooling rates can be selected, with temperature ramps of between 0.1°C/min to 5°C/min. There is also a crash function for even faster temperature changes, which is ideal for kinetic determinations.
Extreme temperature accuracy is guaranteed, with a temperature stability of ± 0.5°C and a minimal set point overshoot of 0.5°C. The temperature may be maintained
either through the block itself or by using a probe within each cell’s solution.

This accuracy can be maintained over a wide temperature range of -30°C to 150°C, with precise, independently controlled temperature profiles, and homogeneous sample mixing may be assured with stirring rates of
between 350rpm to 1200rpm using magnetic stirrers.

With working volumes of between 2ml to 25ml, the STEM Integrity 10 is an excellent screening tool for most laboratories and can also be used to establish ideal process conditions.
